INNOVATIVE BULK MATERIAL HANDLING TECHNOLOGIES

PIVOTED OVERLAPPING BUCKET ELEVATORS

MODEL LH-300-SW

HIGH CAPACITY SERIES
MODEL LH-300-SW
ELEVATOR CAPACITIES
ELEVATOR MODEL

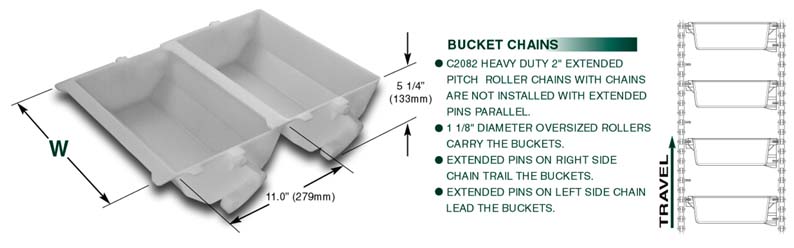

W

BUCKET WIDTH
BUCKET VOLUME
STANDARD END DISCHARGE
SIDE DISCHARGE

CHAIN SPEED 75 FPM (22.86 MPM)

BUCKET PITCH 12" (305 MM)

CHAIN SPEED 60 FPM (18.29 MPM)

BUCKET PITCH 12"(305 MM)
LOADING 100% FULL
LOADING 75% FULL
LOADING 75% FULL
INCHES
MM
IN.^3
LITERS
FT^3/HR
M^3/HR
FT^3/HR
M^3/HR
FT^3/HR
M^3/HR
LH-300-9
9
229
335
5.5
875
24.78
655
18.55
525
14.87
LH-300-12
12
305
460
7.5
1200
33.98
900
25.49
720
20.39
LH-300-15
15
381
585
9.6
1525
43.19
1145
32.40
915
25.91
LH-300-18
18
457
710
11.6
1850
52.39
1390
39.30
1110
31.44
LH-300-21
21
533
835
13.6
2175
61.60
1630
46.16
1305
36.95
LH-300-24
24
610
960
15.7
2500
70.80
1875
53.10
1500
42.48
LH-300-30
30
762
1170
19.2
3050
86.38
2290
64.85
1825
51.68
LH-300-36
36
914
1420
23.3
3600
101.95
2700
76.46
2215
62.73
LH-300-42
42
1067
1670
27.4
4350
123.19
3262
88.22
2605
73.77
LH-300-48
48
1219
1920
31.5
5000
141.60
3750
99.83
3000
85.00
